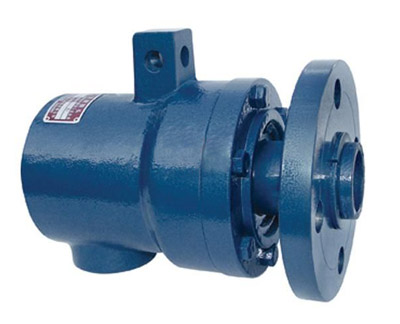

Q1D/Q1D-F型旋转接头
| 规格 | 型号 | A | C | E | F1 | H | I | I1 | I2 | J | L | L4 | L5 | M1 | M2 | N | O | P | Q | R | S | T | U |
| 20 | Q1D20 | R3/4 | Rc3/4 | 96 | 30 | 58 | - | 12 | - | 30 | 140 | 117 | 39 | 81 | 66 | 18 | - | - | - | - | - | - | - |
| 25 | D1D25 | R1 | Rc1 | - | 25 | 54 | 11 | - | - | 25 | 179 | 155 | 48 | - | 93 | 25 | - | - | - | - | - | - | - |
| 32 | Q1D32 | R1-1/4 | Rc1-1/4 | 120 | 63 | 70 | - | - | 14 | 34 | 186 | 155 | 59 | 112 | 95 | 30 | - | - | - | - | - | - | - |
| 40 | Q1D40 | R1-1/2 | Rc1-1/2 | 130 | 70 | 78 | - | - | 16 | 32 | 224 | 187 | 69 | 133 | 117 | 38 | - | - | - | - | - | - | - |
| 50 | Q1D50 | R2 | Rc2 | 160 | 85 | 95 | - | 18 | - | 40 | 231 | 186 | 64 | 124 | 104 | 48 | - | - | - | - | - | - | - |
| 20 | Q1D-F20 | - | Rc3/4 | 96 | 30 | 58 | - | 12 | - | 30 | 155 | 132 | 54 | 96 | 81 | 18 | 27 | 75 | 105 | 16 | 8 | 4 | 14 |
| 25 | Q1D-F25 | - | Rc1 | - | 25 | 54 | 11 | - | - | 25 | 183 | 159 | 52 | - | 97 | 25 | 33.5 | 85 | 115 | 16 | 8 | 4 | 14 |
| 32 | Q1D-F32 | - | Rc1-1/4 | 120 | 63 | 70 | - | - | 14 | 34 | 190 | 159 | 63 | 116 | 99 | 30 | 42 | 100 | 140 | 18 | 12 | 4 | 18 |
| 40 | Q1D-F40 | - | Rc1-1/2 | 130 | 70 | 78 | - | - | 16 | 32 | 224 | 187 | 69 | 133 | 117 | 38 | 48 | 110 | 150 | 18 | 12 | 4 | 18 |
| 50 | Q1D-F50 | - | Rc2 | 160 | 85 | 95 | - | 18 | - | 40 | 236 | 191 | 69 | 129 | 109 | 48 | 60 | 125 | 165 | 20 | 15 | 4 | 18 |
| 规格 | 型号 | A | C | F1 | H1 | I | J1 | J2 | L | L4 | L5 | N | O | P | Q | R | S | T | U |
| 65 | QD65 | R2-1/2 | Rc2-1/2 | 90 | 220 | 20 | 118 | 190 | 320 | 198 | 80 | 64 | - | - | - | - | - | - | - |
| 80 | QD80 | R3 | Rc3 | 110 | 300 | 26 | 115 | 236 | 384 | 233 | 90 | 75 | - | - | - | - | - | - | - |
| 100 | QD100 | R4 | Rc4 | 97 | 300 | 26 | 121 | 228 | 577 | 511 | 90 | 97 | - | - | - | - | - | - | - |
| 65 | QD-F65 | - | Rc2-1/2 | 90 | 220 | 20 | 103 | 190 | 335 | 213 | 95 | 64 | 78 | 145 | 185 | 20 | 18 | 4 | 18 |
| 80 | QD-F80 | - | Rc3 | 110 | 300 | 26 | 115 | 236 | 384 | 233 | 90 | 75 | 90 | 160 | 200 | 20 | 20 | 8 | 18 |
| 100 | QD-F100 | - | Rc4 | 97 | 300 | 26 | 121 | 228 | 577 | 511 | 90 | 97 | 112 | 180 | 220 | 22 | 22 | 8 | 18 |
